Erwin Halder KG

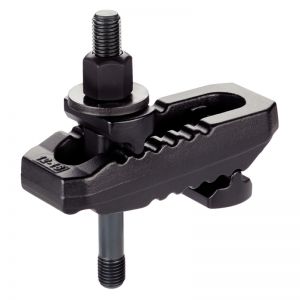

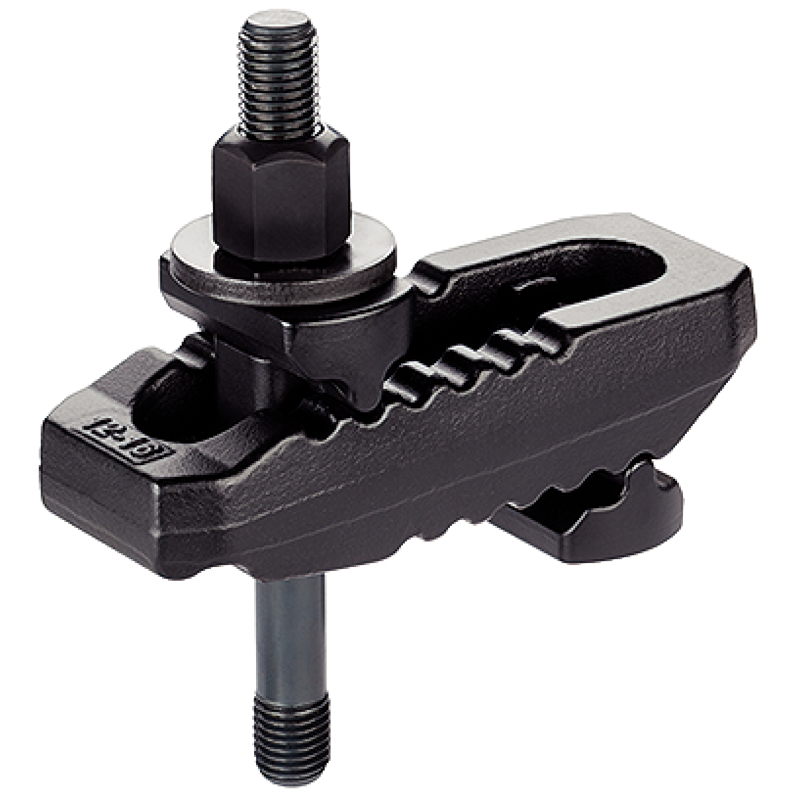

Vpenjalo

slotted, with adjustable counter piece, with stud

Koda: EH 23185-3

The thrust pad and the counter element are connected with the clamp and therefore secured against loss. Consequently, the clamp is quickly ready for use. The clamp is equipped with two flat noses and can be turned around depending on the case of application.

Material

Screw

Heat-treated steel

Nut

Heat-treated steel

disc

Heat-treated steel

Clamp

Steel, tempered, zinc-plated by galvanization, black

References

Larger clamping heights can be reached by the use of a support extension (EH 23185.).

Za ogled cen se prijavite

Številka izdelka	a₁	a₂	a₃	b₁	b₂	Clamp
EH 23185.0212	27 mm	12 mm	17 mm	44 mm	30 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0213	27 mm	12 mm	17 mm	44 mm	30 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0214	36 mm	17 mm	21 mm	55 mm	41 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0215	36 mm	17 mm	21 mm	55 mm	41 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0216	36 mm	17 mm	21 mm	55 mm	41 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0217	36 mm	17 mm	21 mm	55 mm	41 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0218	42 mm	20 mm	27 mm	62 mm	30 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0219	42 mm	20 mm	27 mm	62 mm	30 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0220	42 mm	20 mm	27 mm	62 mm	30 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0221	42 mm	20 mm	27 mm	62 mm	30 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0222	51 mm	24 mm	34 mm	70 mm	30 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0223	51 mm	24 mm	34 mm	70 mm	30 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0224	51 mm	24 mm	34 mm	70 mm	30 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0225	51 mm	24 mm	34 mm	70 mm	30 mm	Steel, tempered, zinc-plated by galvanization, black
