Erwin Halder KG

Vpenjalo

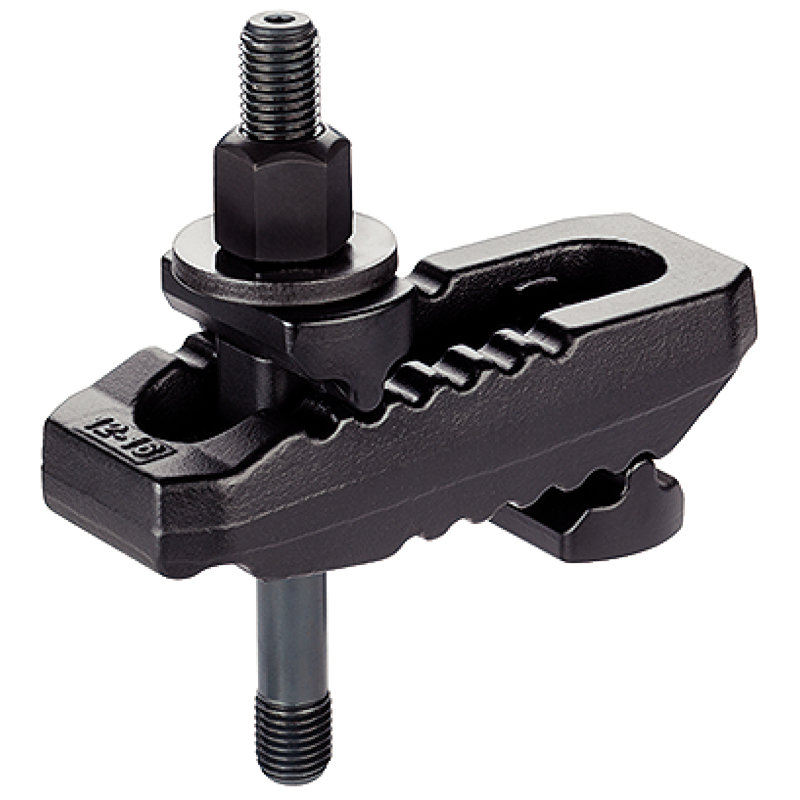

slotted, with adjustable counter piece, with stud with internal hexagon

Koda EH 23185-4

Izberi izvedbo

Erwin Halder KG

Vpenjalo

slotted, with adjustable counter piece, with stud with internal hexagon

Koda: EH 23185-4

The thrust pad and the counter element are connected with the clamp and therefore secured against loss. Consequently, the clamp is quickly ready for use. The clamp is equipped with two flat noses and can be turned around depending on the case of application.

Material

Screw

Heat-treated steel

Nut

Heat-treated steel

disc

Heat-treated steel

Clamp

Steel, tempered, zinc-plated by galvanization, black

Assembly

The internal hexagon in the stud enables quick assembly and disassembly.

References

Larger clamping heights can be reached by the use of a support extension (EH 23185.).

Za ogled cen se prijavite

Številka izdelka	a₁	a₂	a₃	b₁	b₂	Clamp
EH 23185.0312	27 mm	12 mm	17 mm	44 mm	30 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0313	27 mm	12 mm	17 mm	44 mm	30 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0314	36 mm	17 mm	21 mm	55 mm	41 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0315	36 mm	17 mm	21 mm	55 mm	41 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0316	36 mm	17 mm	21 mm	55 mm	41 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0317	36 mm	17 mm	21 mm	55 mm	41 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0318	42 mm	20 mm	27 mm	62 mm	30 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0319	42 mm	20 mm	27 mm	62 mm	30 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0320	42 mm	20 mm	27 mm	62 mm	30 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0321	42 mm	20 mm	27 mm	62 mm	30 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0322	51 mm	24 mm	34 mm	70 mm	30 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0323	51 mm	24 mm	34 mm	70 mm	30 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0324	51 mm	24 mm	34 mm	70 mm	30 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
EH 23185.0325	51 mm	24 mm	34 mm	70 mm	30 mm	Steel, tempered, zinc-plated by galvanization, black
Podatki se nalagajo...
