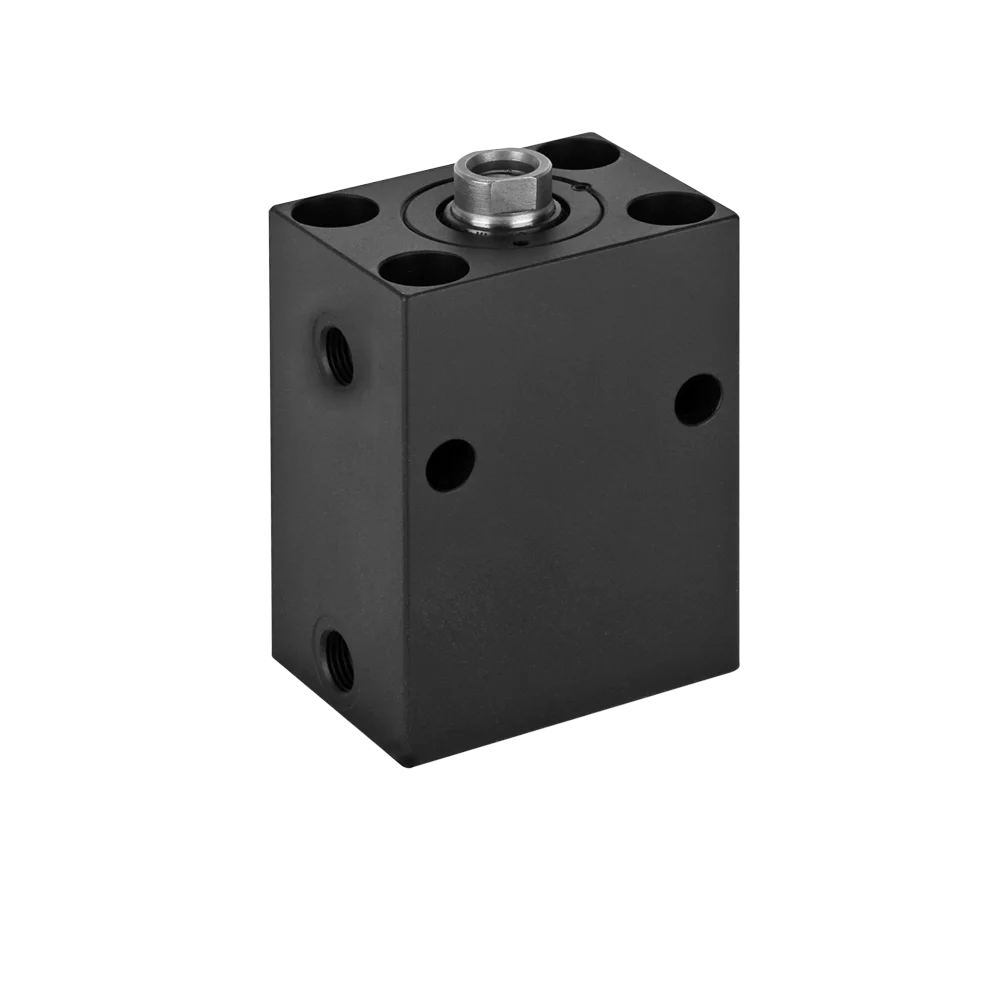

B 1.5094 Block Cylinders
Double-acting block cylinders can be used universally for all hydraulically-operated linear movements.
- Positioning
- Clamping
- Supporting
- Locking
- Bending
- Riveting
- Punching
- Moving
- Opening and closing
- Locking and unlocking
- Lifting and lowering
- Pushing and pulling
The double-acting functioning allows a force generation in both axial directions (force to push and to pull). This guarantees a high function safety as well as exactly calculable and repetitive times required for the stroke.
Fixing possibilities

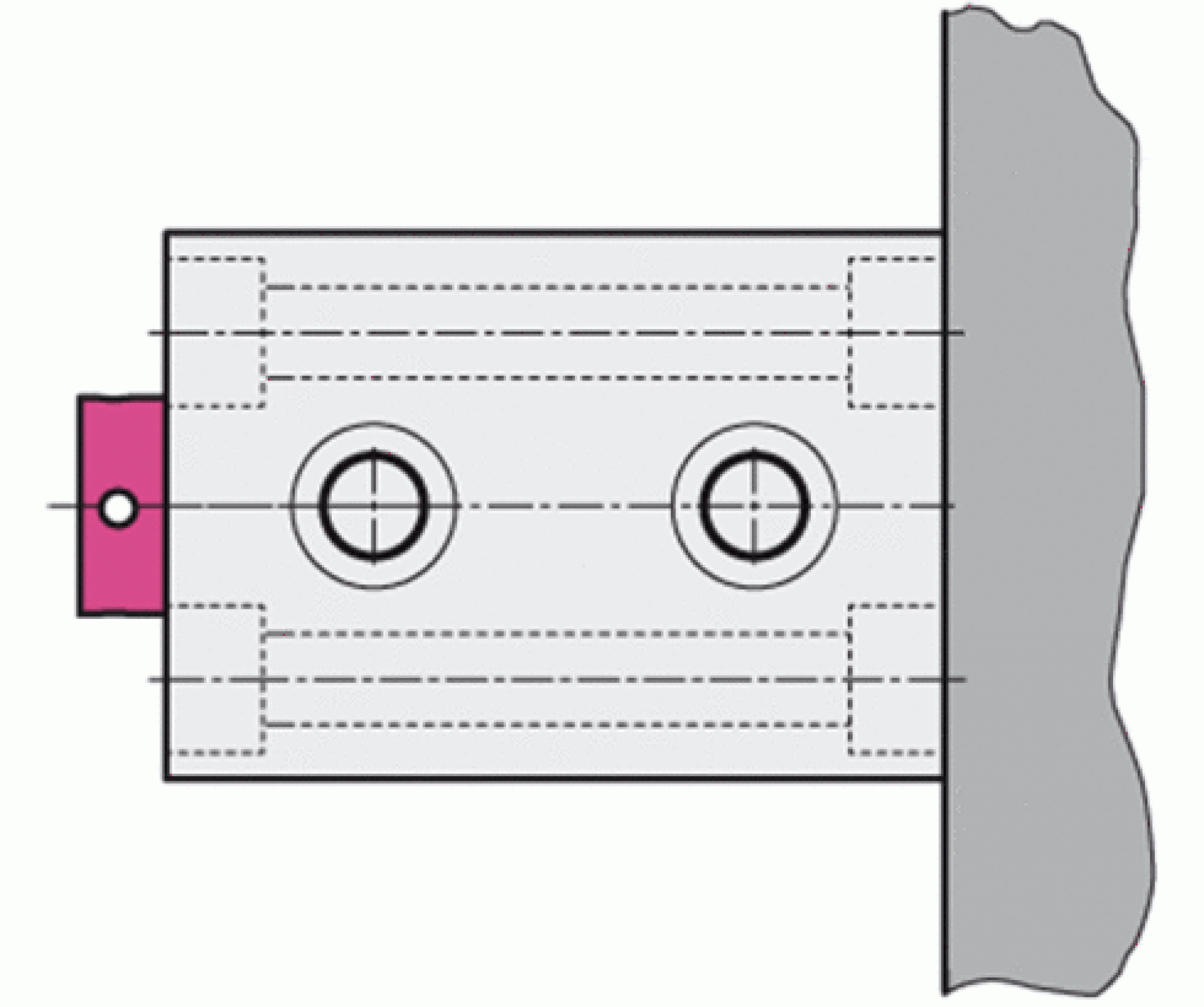

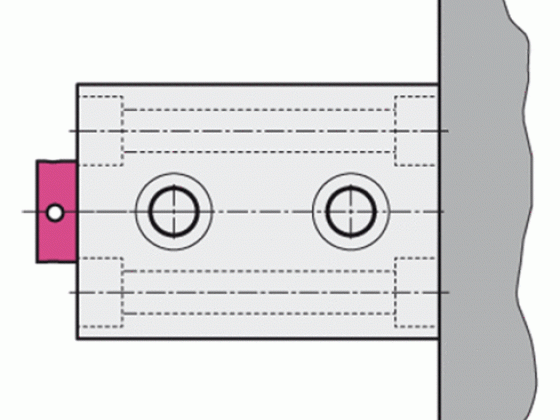

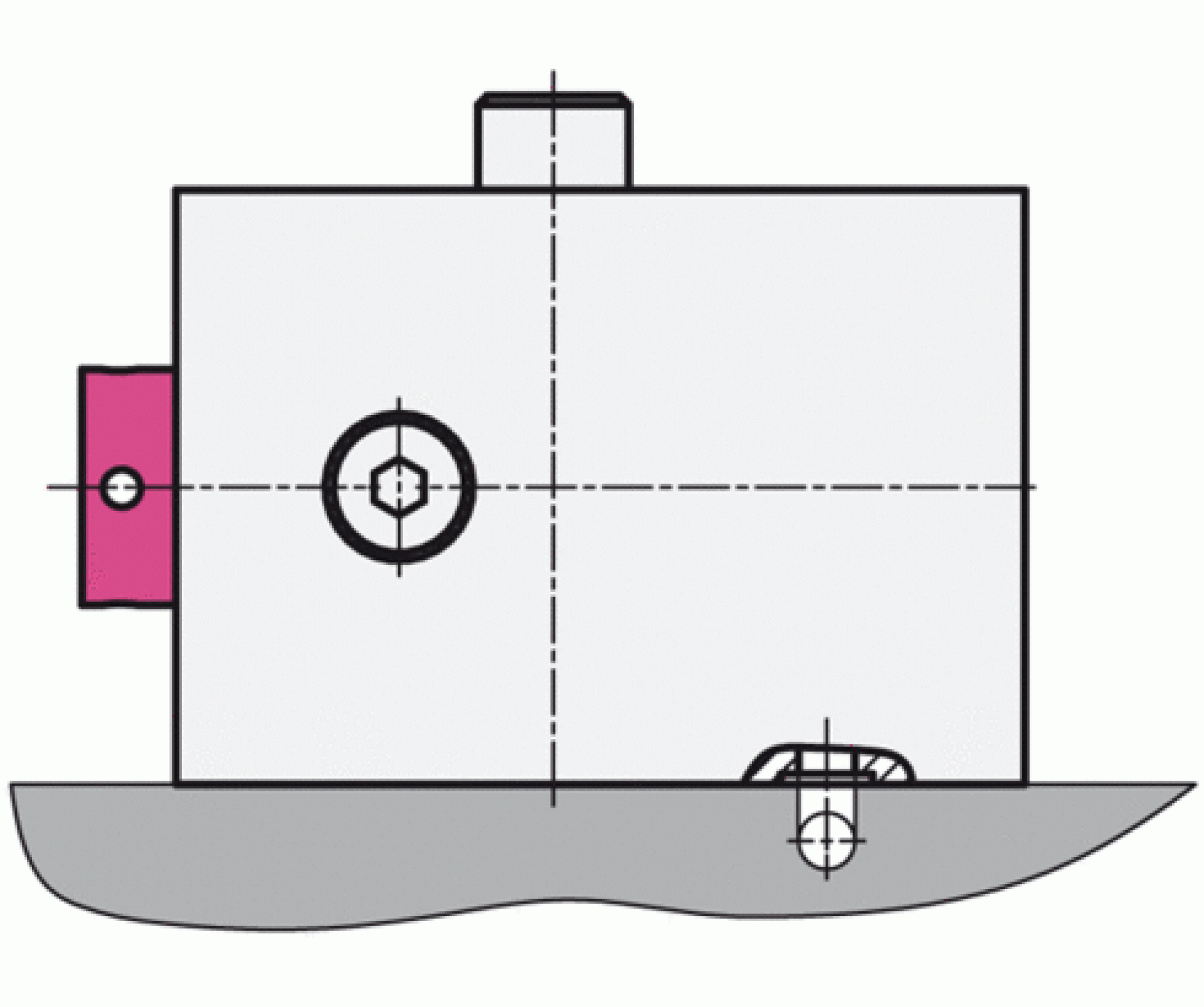

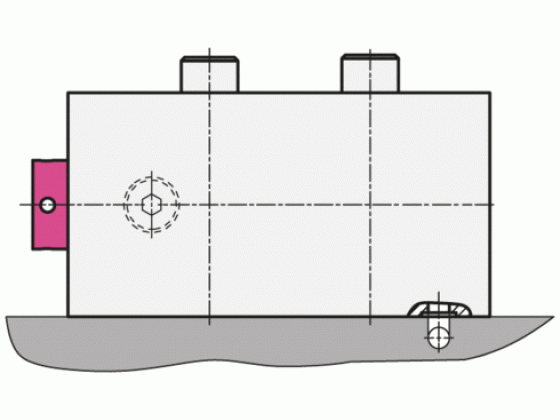

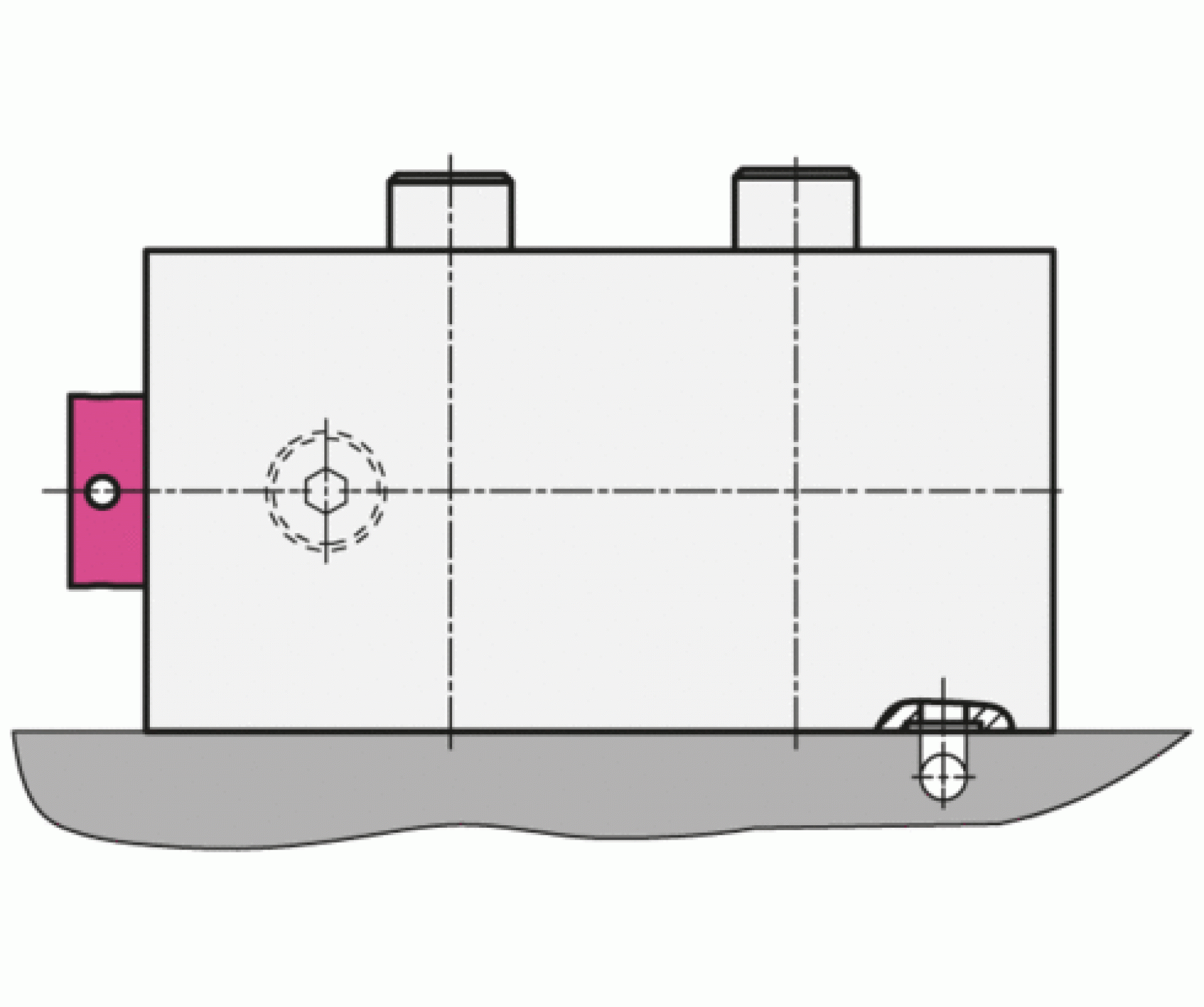

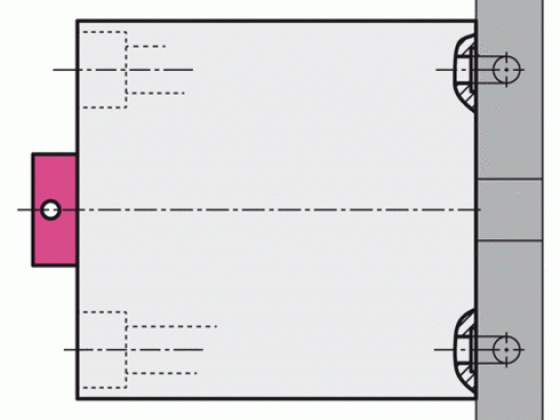

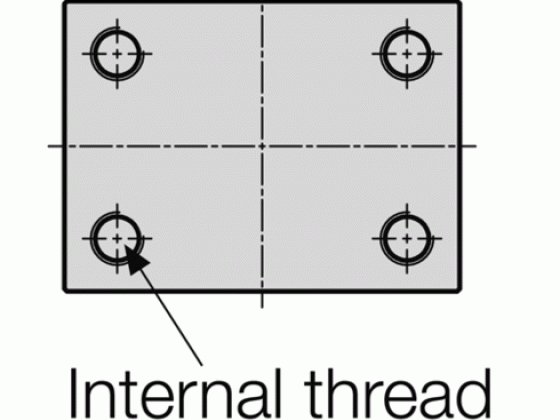

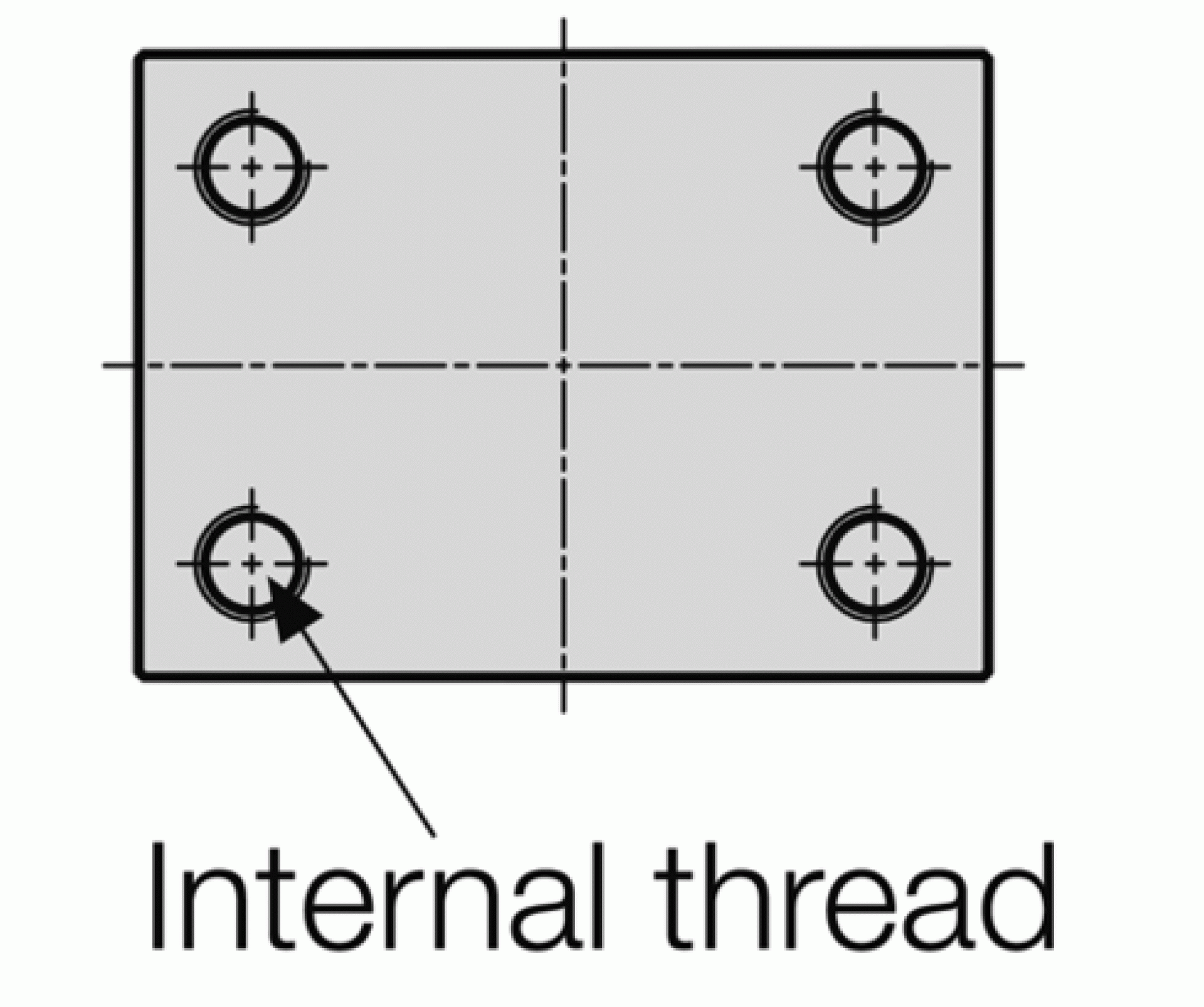

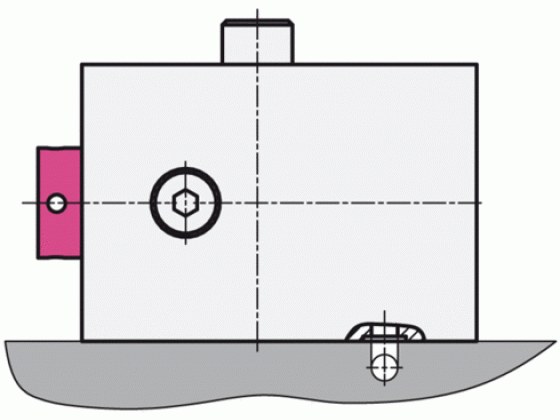

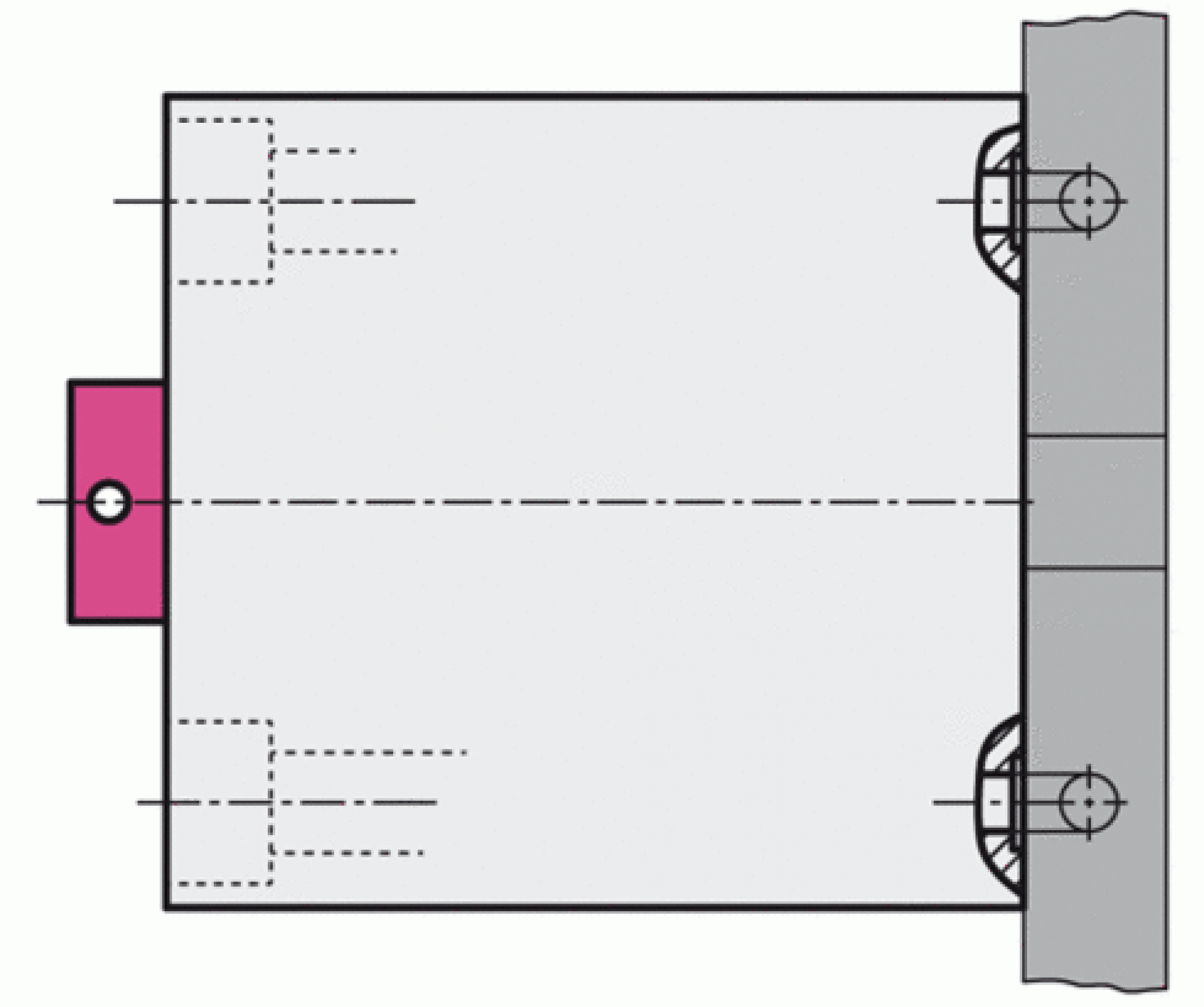

Block cylinders have cross holes and/or longitudinal holes for mounting. For mounting of the block cylinders internal threads can be provided instead of the through holes, optionally at the piston rod side or the bottom side.

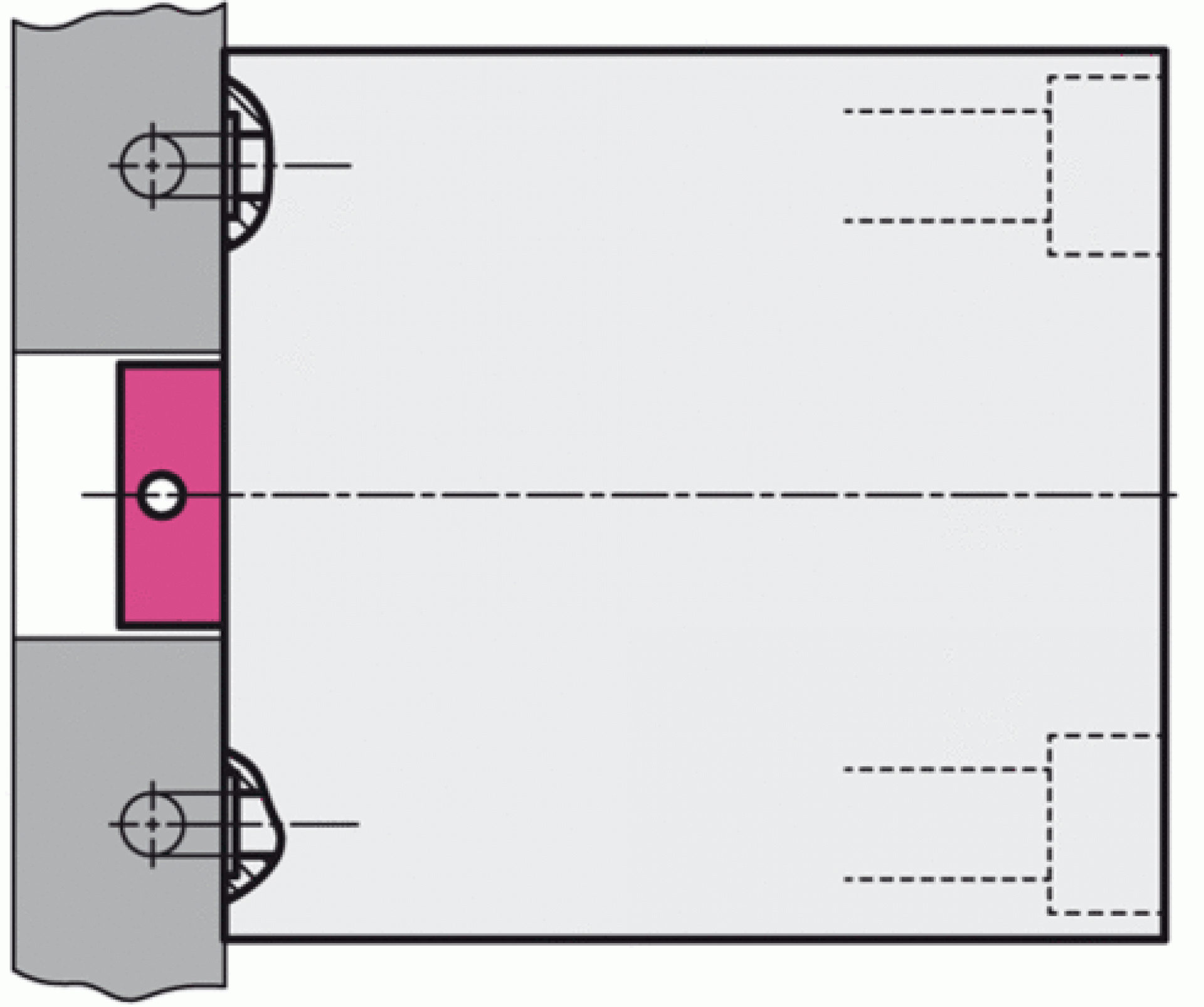

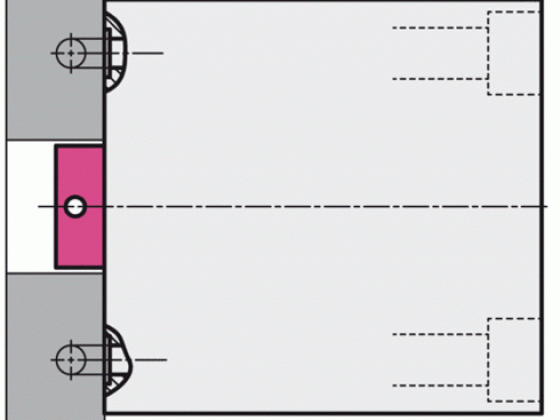

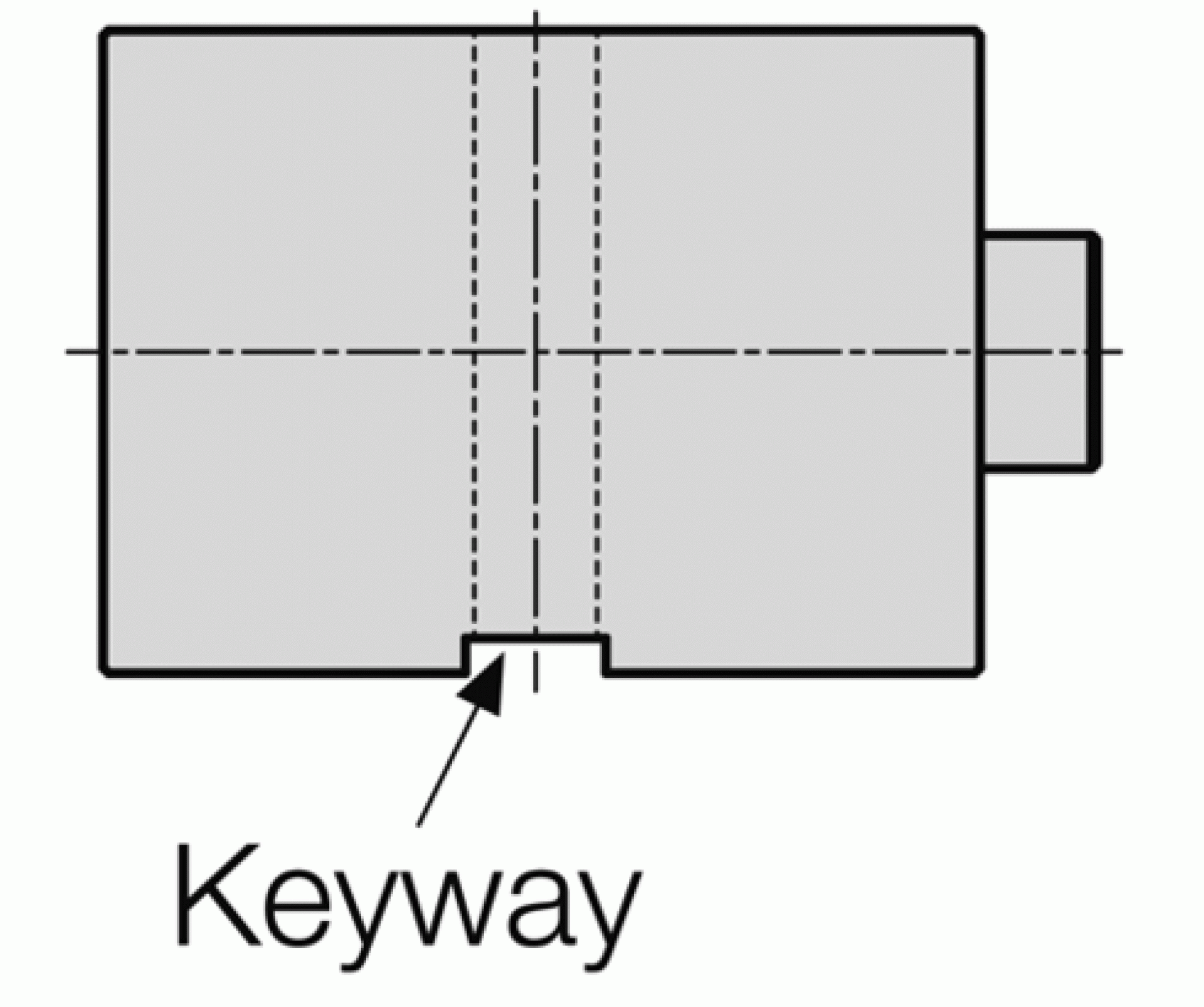

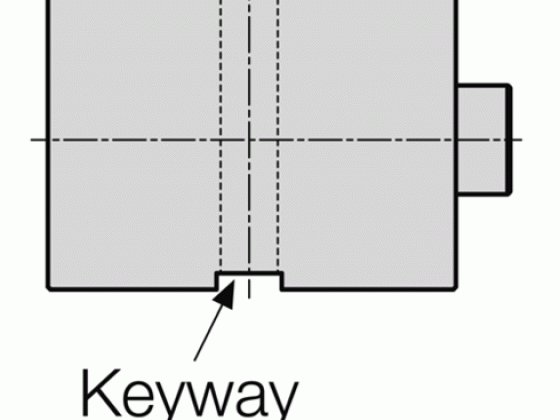

As an alternative to a support, hydraulic block cylinders can be fitted in the housing with a keyway, which transfers the cylinder forces to the baseplate surface via a key.
Hydraulic connecting possibilities

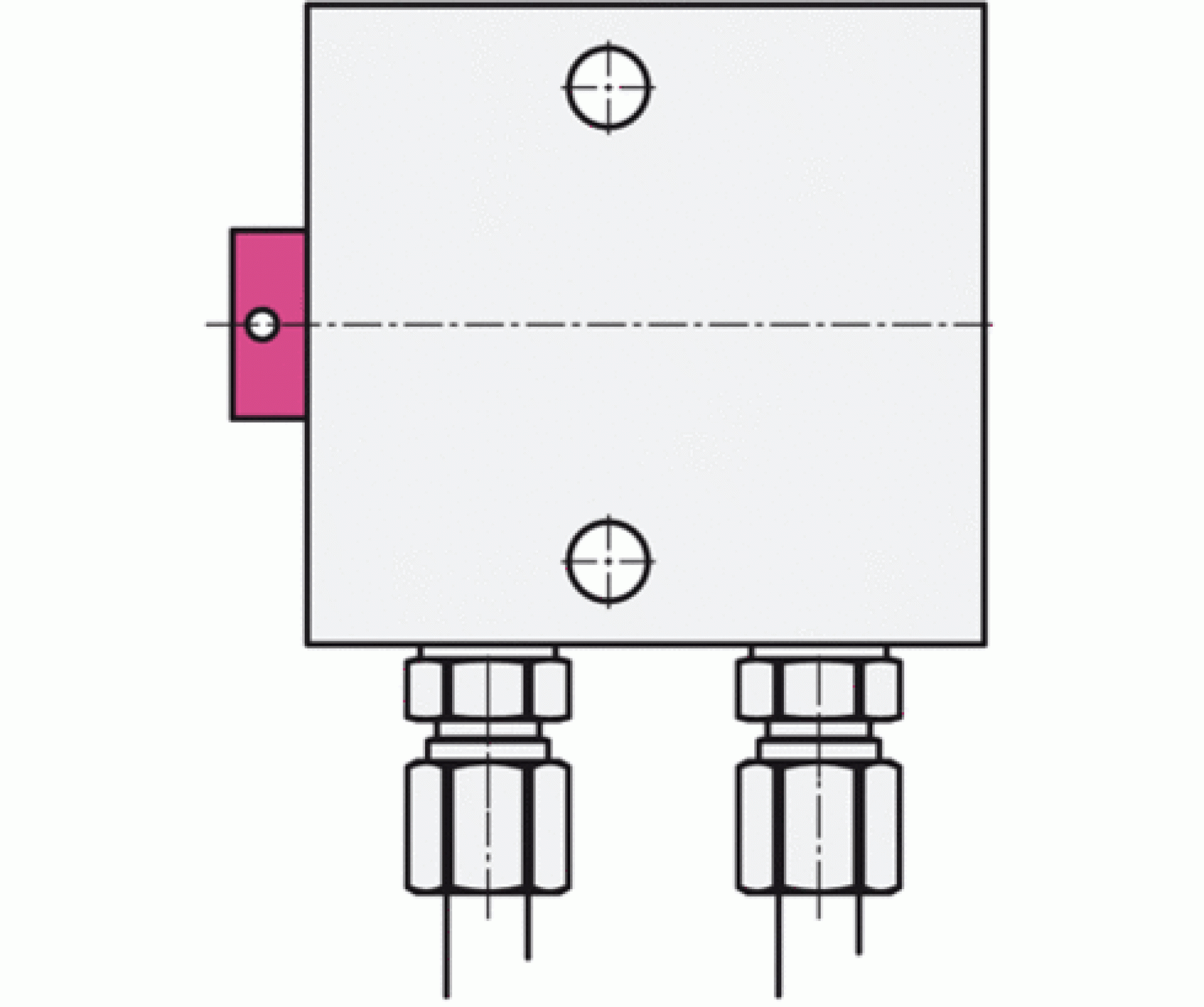

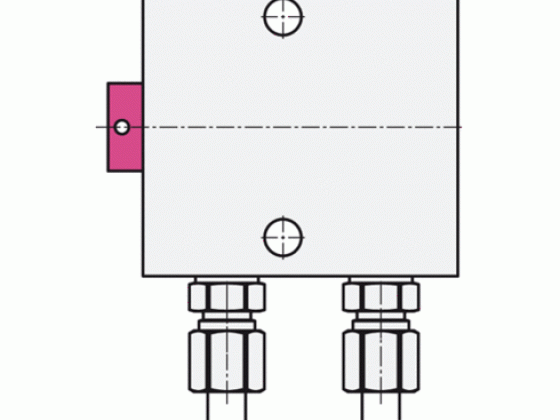

Connection with pipe thread
Manifold-mounting with O-ring sealing
Manifold-mounting connection K- with 2 mounting holes
Manifold-mounting connection L - with 4 mounting holes
Manifold-mounting connection S- with 4 mounting holes
Manifold-mounting connection B- with 4 mounting holes
Intermediate strokes
Stroke limitation by distance bushing: Economical and quickly supplied intermediate strokes

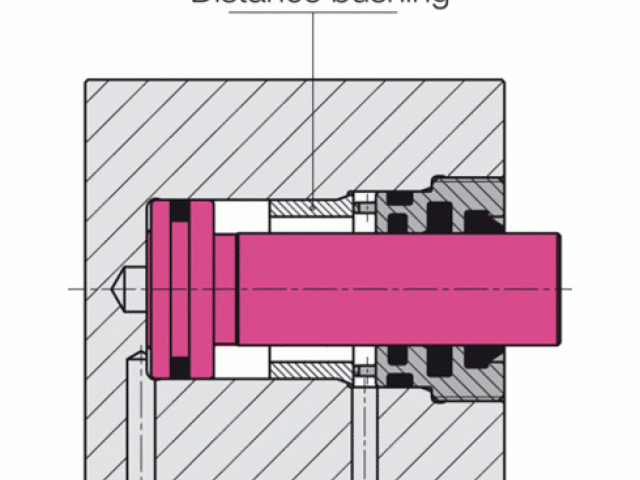

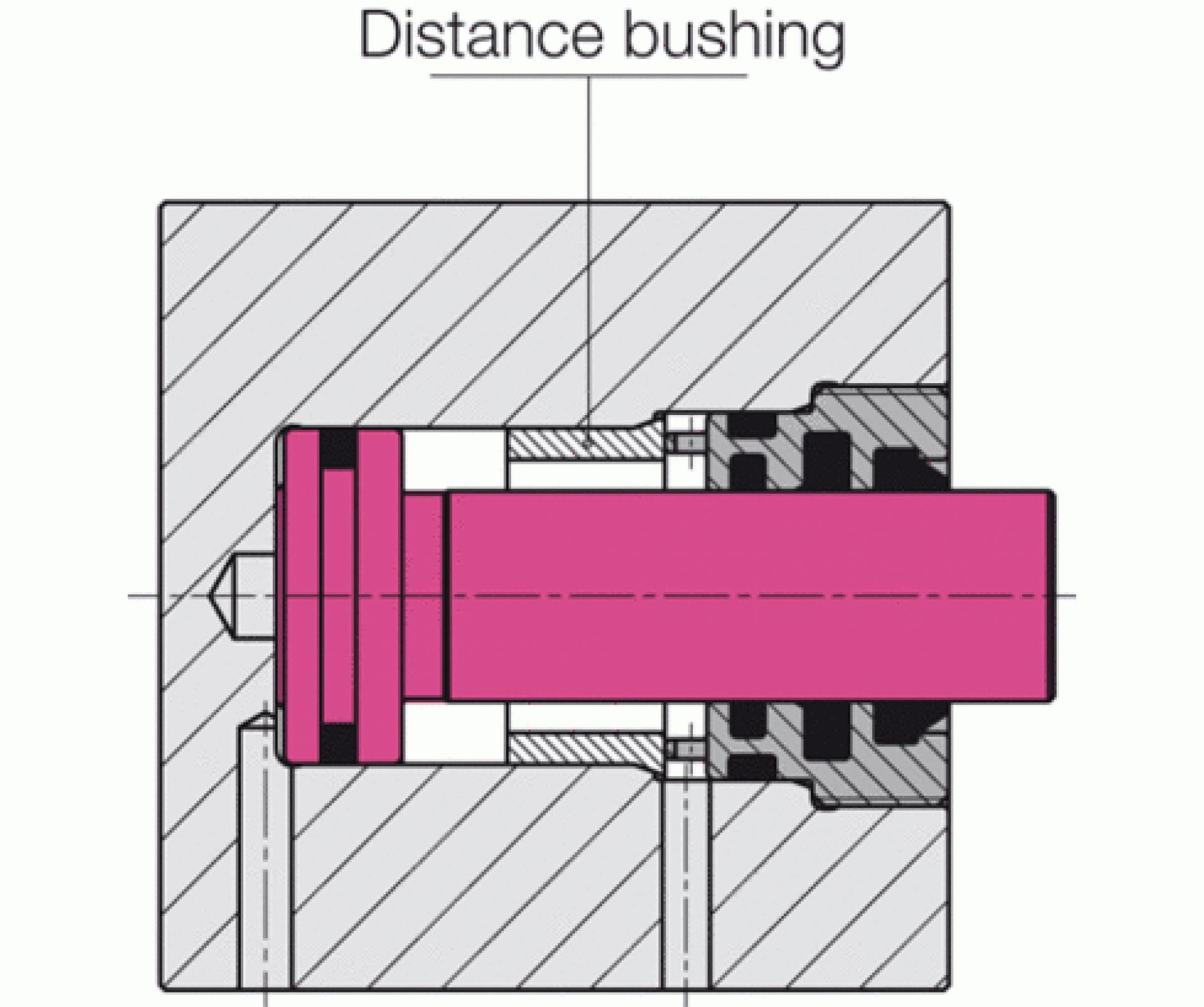

A distance bushing is inserted on the piston rod side in the standard cylinder with the next largest stroke and fastened inside the housing. That means the piston can no longer complete the extending stroke and the stroke is restricted by this internal stop, dependent on the length of the bushing.

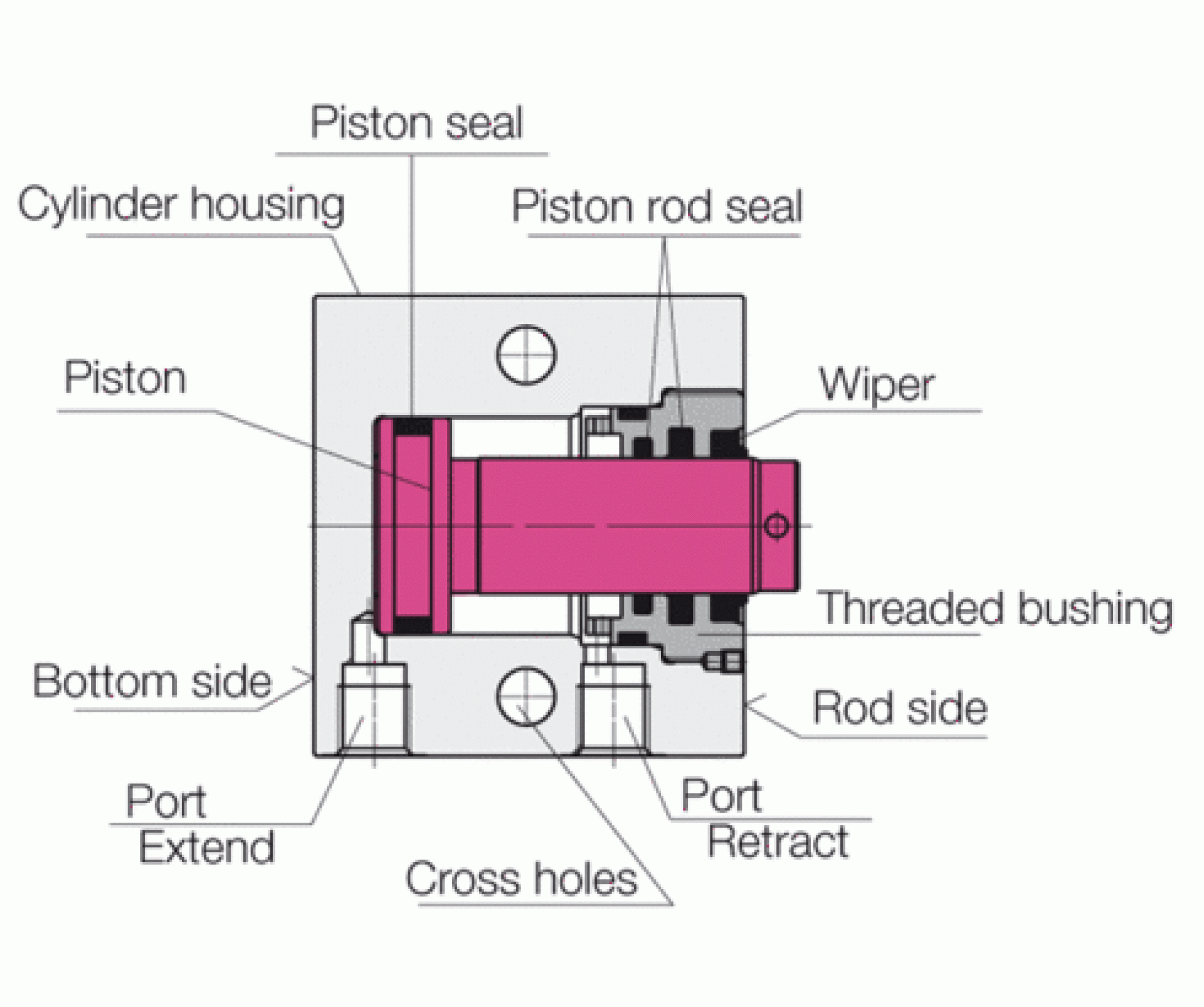

Design of block cylinders

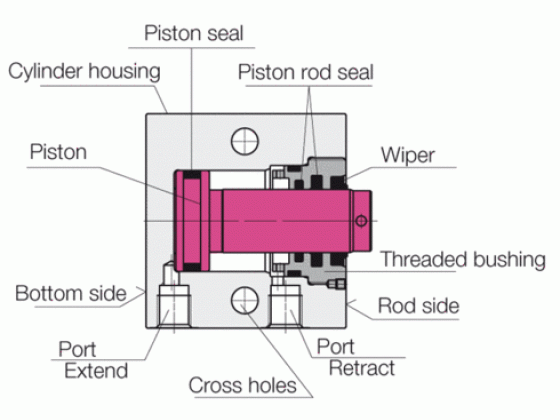

- Double acting

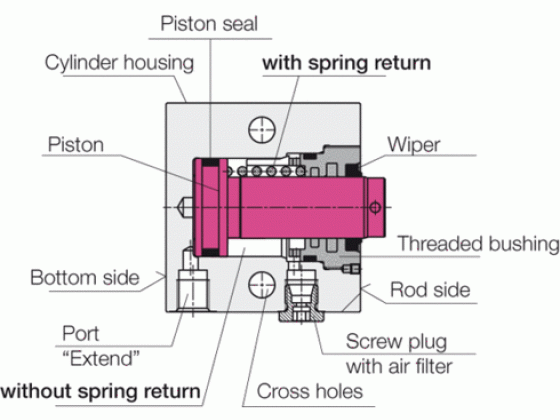

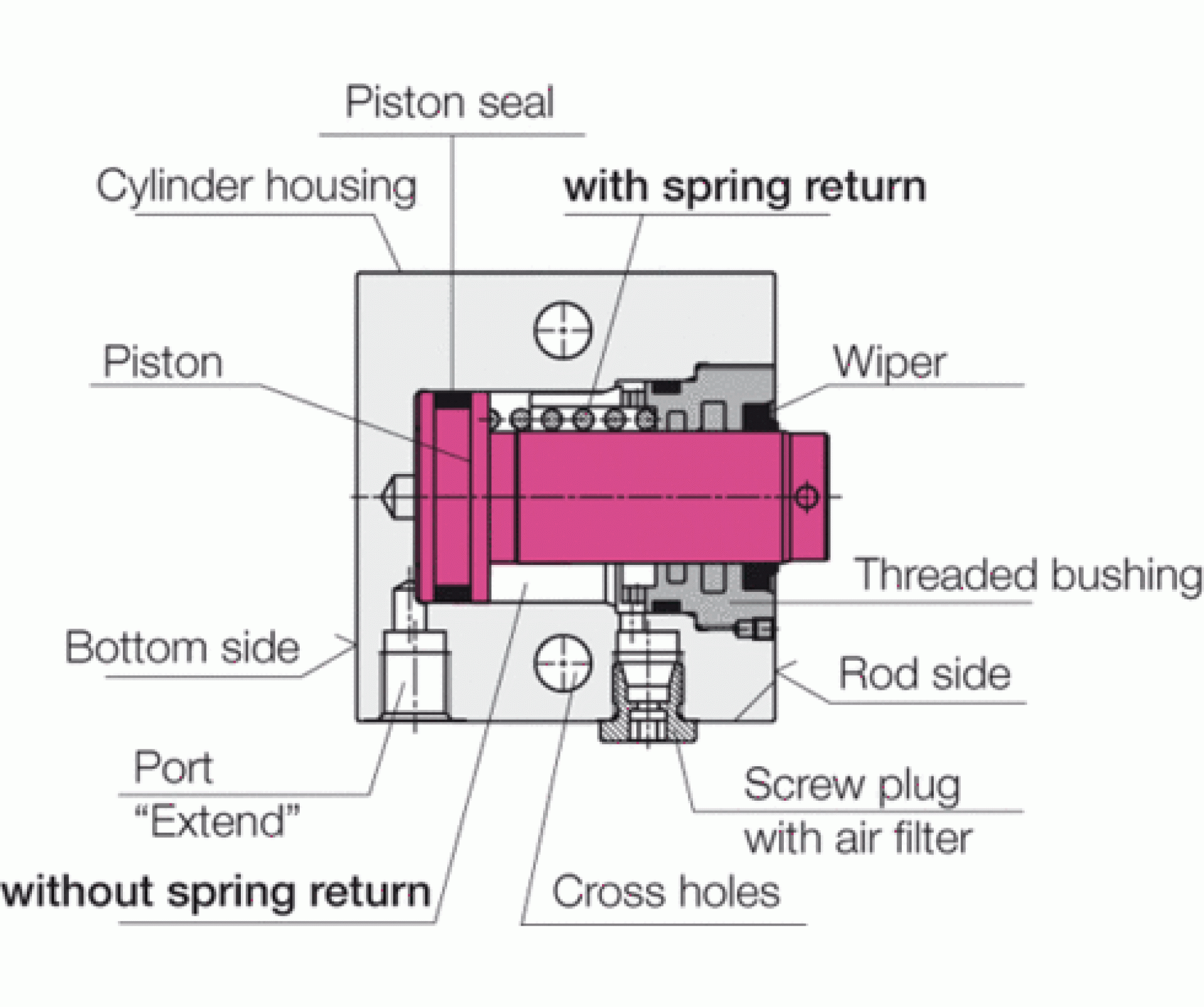

- Single acting
