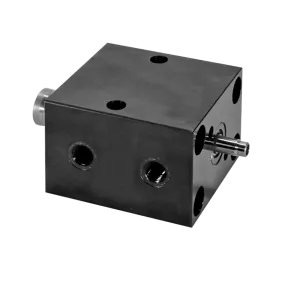

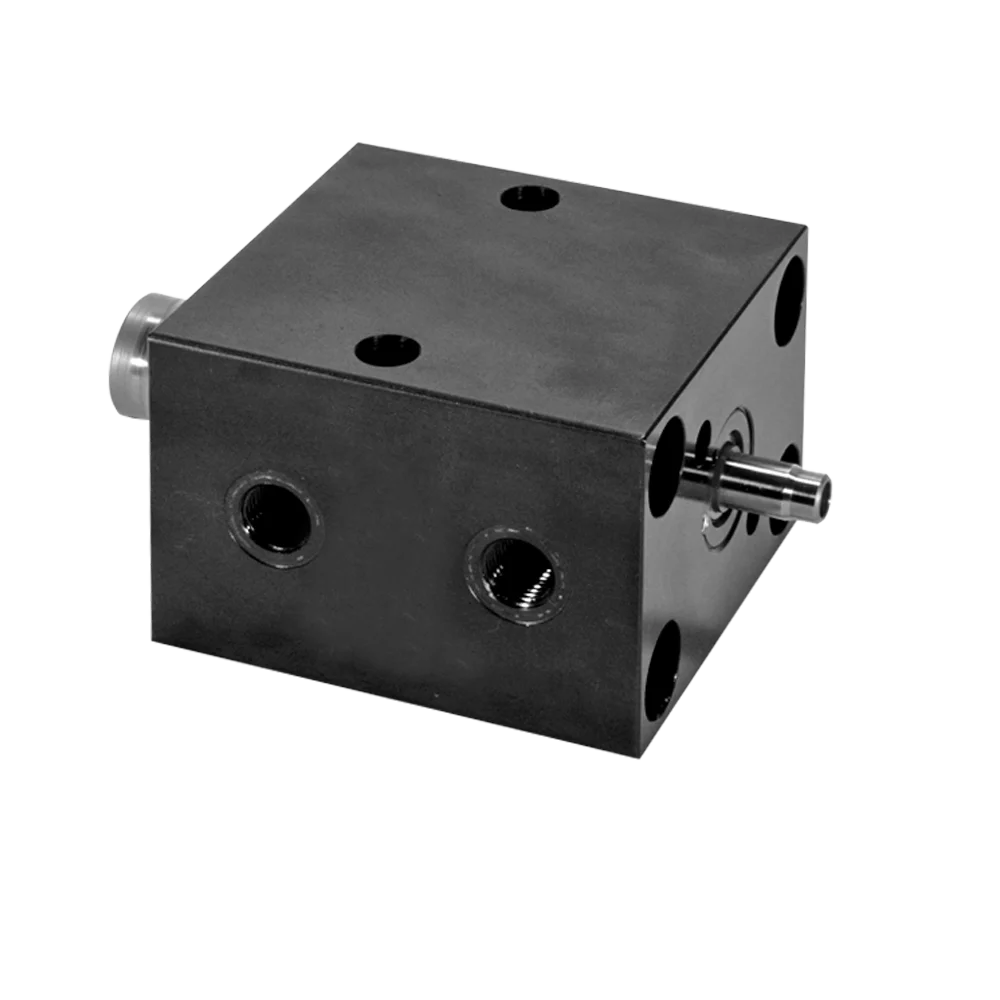

B 1.552 Block Cylinders double acting, with extended piston rod for position monitoring

Block cylinders with extended piston rods are used if one or several piston positions have to be controlled.

Especially if:

• Standard inductive proximity switches should be used
• The piston positions have to be adjusted on the spot
• Control has to be effected at the cylinder bottom due to space restrictions

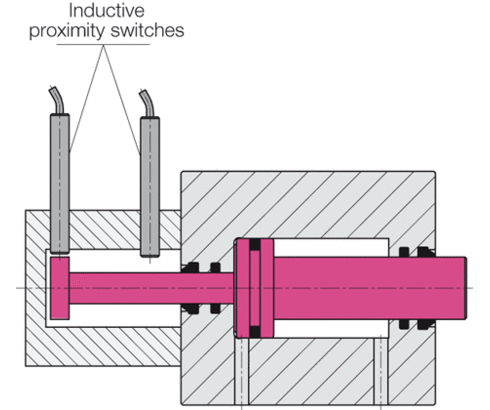

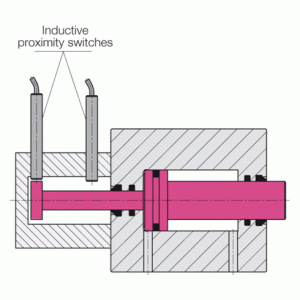

The piston is equipped with a rod of diameter 10 mm that protrudes at the cylinder bottom. At this rod the customer can fix a control cam that is used to operate any limit switch or sensor.
As an accessory a complete position monitoring system is available. This unit contains a control cam as well as two inductive proximitiy switches. The switches can be displaced in the housing. The housing will be screwed on at the cylinder bottom.
