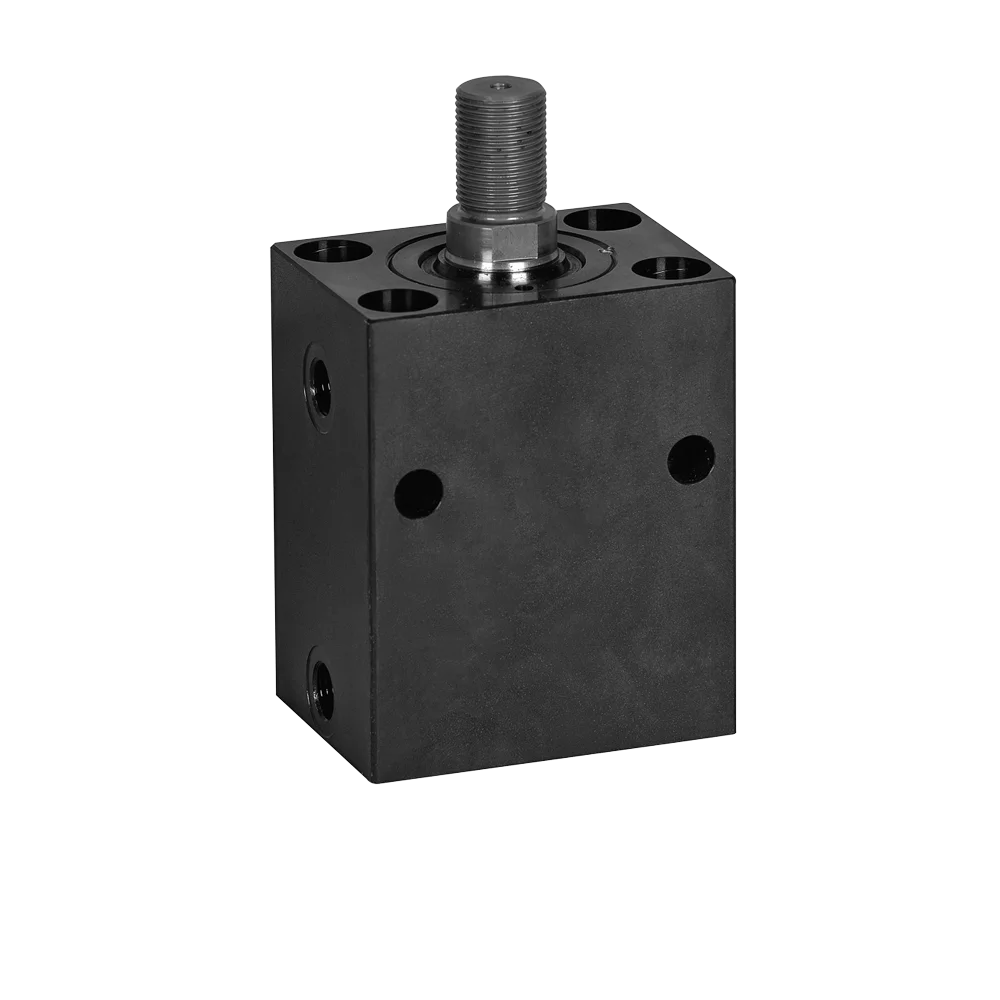

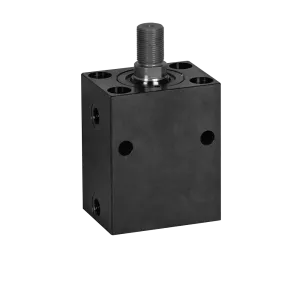

B 1.542 Block cylinders
Double-acting block cylinders can be used universally for all hydraulic-operated linear movements.
The double-acting functioning allows a high function safety as well as exactly calculable and repeatable stroke times.
Application example 1
Operating a slide in a deep-draw mould

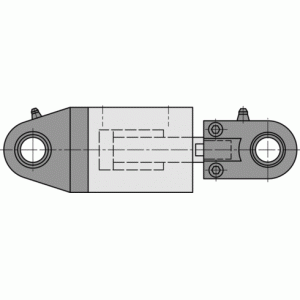

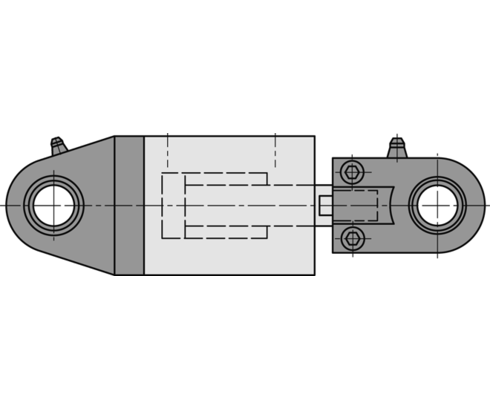

If it is impossible to install a block cylinder directly due to force or space restrictions, the block cylinder with spherical bearing might be an alternative.

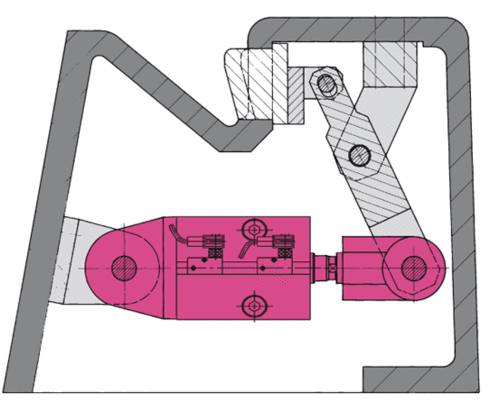

The figure shows the operation of a slide in a deep-draw mould for a container. The position monitoring supplies the required information about the position of the connecting part.
