Erwin Halder KG

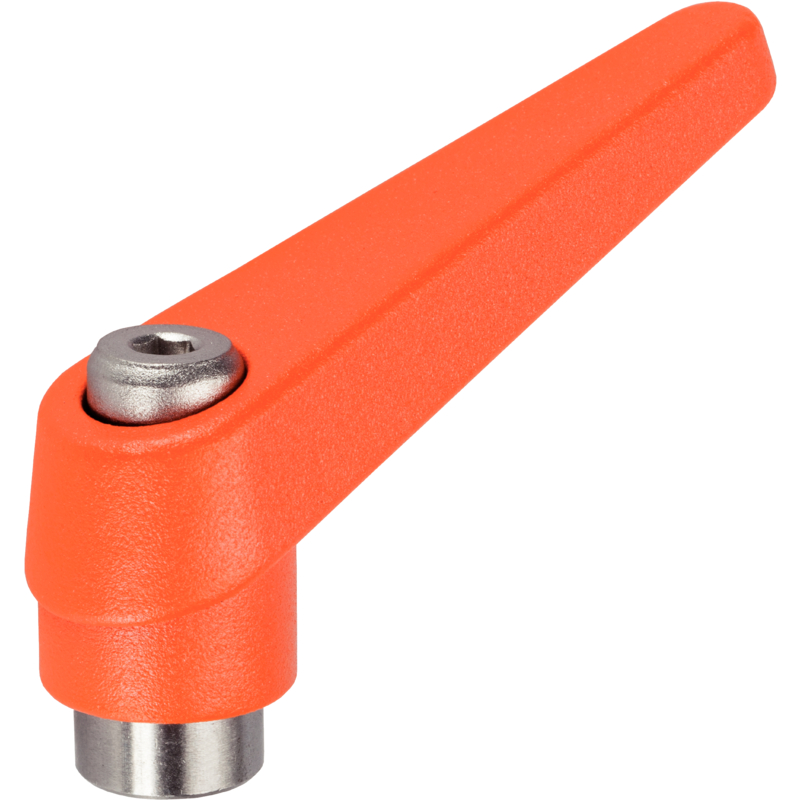

Nastavljiva vpenjalna ročica

inner parts from stainless steel, with female thread

Koda: EH 24390-1

Adjustable clamping levers with rust-proof inner parts. Suitable for multiple applications, e.g. medical environments, chemical industry, and so on.

Material

Lever

Zinc die-cast, plastic coated, orange similar to RAL 2004, matt structure

Threaded part

Stainless steel 1.4305

Inner parts

Stainless steel 1.4305

Operation

By lifting the lever the serrations are disengaged. The lever can be positioned by the serrations. On releasing the lever, the serrations are automatically re-engaged.

Notes

The threaded portion can be exchanged.

Za ogled cen se prijavite

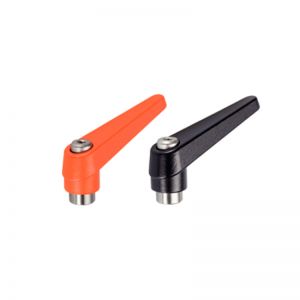

Številka izdelka	d₁	d₂	d₃	Colour	Conflict Minerals free	Function
EH 24390.0032	13 mm	M3	10 mm	orange	yes	fasten
Podatki se nalagajo...
EH 24390.0034	13 mm	M3	10 mm	black	yes	clamp
Podatki se nalagajo...
EH 24390.0036	13 mm	M4	10 mm	orange	yes	operate
Podatki se nalagajo...
EH 24390.0038	13 mm	M4	10 mm	black	yes	tighten
Podatki se nalagajo...
EH 24390.0111	14 mm	M5	10 mm	orange	yes	clamp
Podatki se nalagajo...
EH 24390.0114	14 mm	M5	10 mm	black	yes	tighten
Podatki se nalagajo...
EH 24390.0121	14 mm	M6	10 mm	orange	yes	tighten
Podatki se nalagajo...
EH 24390.0124	14 mm	M6	10 mm	black	yes	readjust
Podatki se nalagajo...
EH 24390.0321	18 mm	M8	13.5 mm	orange	yes	readjust
Podatki se nalagajo...
EH 24390.0324	18 mm	M8	13.5 mm	black	yes	clamp
Podatki se nalagajo...
EH 24390.0411	22 mm	M8	16 mm	orange	yes	fasten
Podatki se nalagajo...
EH 24390.0414	22 mm	M8	16 mm	black	yes	operate
Podatki se nalagajo...
EH 24390.0421	22 mm	M10	16 mm	orange	yes	tighten
Podatki se nalagajo...
EH 24390.0424	22 mm	M10	16 mm	black	yes	readjust
Podatki se nalagajo...
EH 24390.0511	25 mm	M10	19 mm	orange	yes	tighten
Podatki se nalagajo...
EH 24390.0514	25 mm	M10	19 mm	black	yes	tighten
Podatki se nalagajo...
EH 24390.0521	25 mm	M12	19 mm	orange	yes	tighten
Podatki se nalagajo...
EH 24390.0524	25 mm	M12	19 mm	black	yes	tighten
Podatki se nalagajo...
EH 24390.0611	30 mm	M12	23 mm	orange	yes	clamp
Podatki se nalagajo...
EH 24390.0614	30 mm	M12	23 mm	black	yes	clamp
Podatki se nalagajo...
