Erwin Halder KG

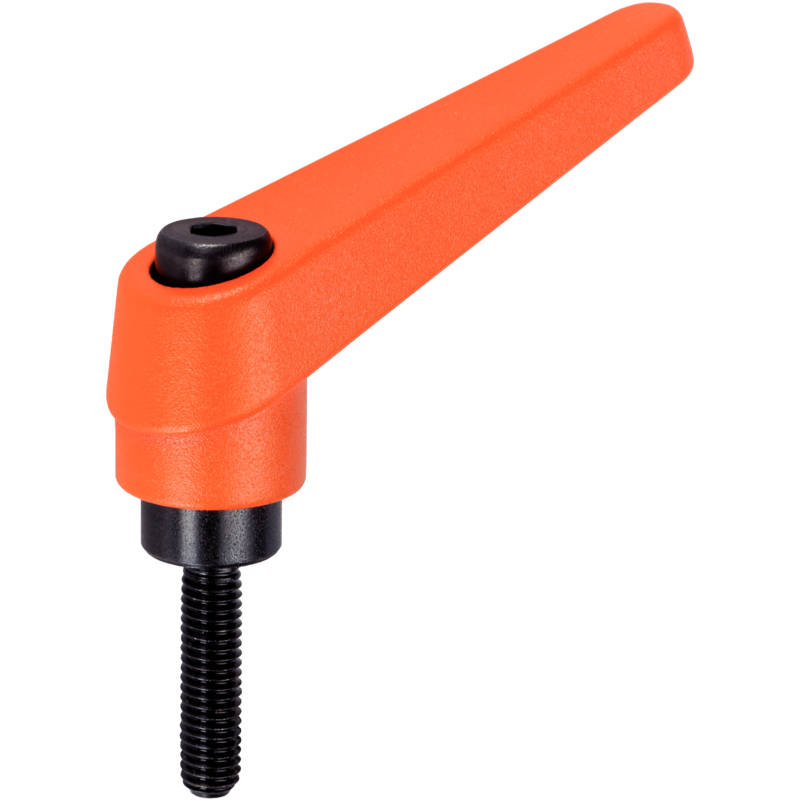

Nastavljiva vpenjalna ročica

with screw

Koda EH 24400-2

Izberi izvedbo

Erwin Halder KG

Nastavljiva vpenjalna ročica

with screw

Koda: EH 24400-2

Material

Lever

Zinc die-cast, plastic coated, orange similar to RAL 2004, matt structure

Inner parts

Steel, blackened, quality 5.8

Screw

Steel, blackened, quality 5.8

Operation

By lifting the lever the serrations are disengaged. The lever can be positioned by the serrations. On releasing the lever, the serrations are automatically re-engaged.

Notes

The screw part can be exchanged.

Za ogled cen se prijavite

Številka izdelka	d₁	d₂	d₃	Colour	Conflict Minerals free	Function
EH 24400.0010	13 mm	M4	10 mm	orange	yes	contact
Podatki se nalagajo...
EH 24400.0012	13 mm	M4	10 mm	black	yes	tighten
Podatki se nalagajo...
EH 24400.0014	13 mm	M4	10 mm	orange	yes	tighten
Podatki se nalagajo...
EH 24400.0016	13 mm	M4	10 mm	black	yes	readjust
Podatki se nalagajo...
EH 24400.0018	13 mm	M4	10 mm	orange	yes	tighten
Podatki se nalagajo...
EH 24400.0020	13 mm	M4	10 mm	black	yes	operate
Podatki se nalagajo...
EH 24400.0022	13 mm	M4	10 mm	orange	yes	tighten
Podatki se nalagajo...
EH 24400.0024	13 mm	M4	10 mm	black	yes	tighten
Podatki se nalagajo...
EH 24400.0026	13 mm	M4	10 mm	orange	yes	clamp
Podatki se nalagajo...
EH 24400.0028	13 mm	M4	10 mm	black	yes	clamp
Podatki se nalagajo...
EH 24400.0041	14 mm	M5	10 mm	orange	yes	clamp
Podatki se nalagajo...
EH 24400.0043	14 mm	M5	10 mm	silver	yes	tighten
Podatki se nalagajo...
EH 24400.0044	14 mm	M5	10 mm	black	yes	clamp
Podatki se nalagajo...
EH 24400.0051	14 mm	M5	10 mm	orange	yes	tighten
Podatki se nalagajo...
EH 24400.0053	14 mm	M5	10 mm	silver	yes	readjust
Podatki se nalagajo...
EH 24400.0054	14 mm	M5	10 mm	black	yes	tighten
Podatki se nalagajo...
EH 24400.0061	14 mm	M5	10 mm	orange	yes	clamp
Podatki se nalagajo...
EH 24400.0063	14 mm	M5	10 mm	silver	yes	clamp
Podatki se nalagajo...
EH 24400.0064	14 mm	M5	10 mm	black	yes	contact
Podatki se nalagajo...
EH 24400.0071	14 mm	M5	10 mm	orange	yes	readjust
Podatki se nalagajo...
