Erwin Halder KG

Nastavljiva vpenjalna ročica

with axial bearing, with screw

Koda EH 24420-2

Izberi izvedbo

Erwin Halder KG

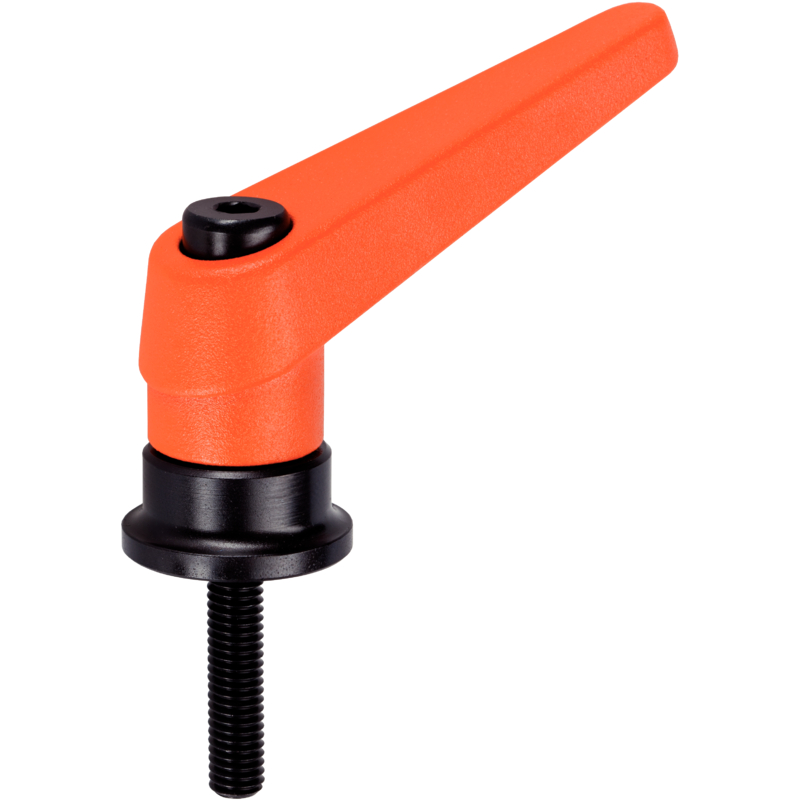

Nastavljiva vpenjalna ročica

with axial bearing, with screw

Koda: EH 24420-2

Advantages of axial bearing:

Double clamping force with same lever size, by reducing the surface friction.
Protection of workpiece by a fixed locating surface.
Little setting due to higher pre-clamping force of bolt, e.g. thread.

Material

Lever

Zinc die-cast, plastic coated, orange similar to RAL 2004, matt structure

Inner parts

Steel, nitrided, blackened

Screw

Steel, nitrided, blackened

Operation

By lifting the lever the serrations are disengaged. The lever can be positioned by the serrations. On releasing the lever, the serrations are automatically re-engaged.

Za ogled cen se prijavite

Številka izdelka	d₁	d₂	d₃	Colour	Conflict Minerals free	Function
EH 24420.0030	18 mm	M6	24 mm	orange	yes	operate
Podatki se nalagajo...
EH 24420.0032	18 mm	M6	24 mm	black	yes	readjust
Podatki se nalagajo...
EH 24420.0050	18 mm	M6	24 mm	orange	yes	fasten
Podatki se nalagajo...
EH 24420.0052	18 mm	M6	24 mm	black	yes	contact
Podatki se nalagajo...
EH 24420.0130	22 mm	M8	25 mm	orange	yes	tighten
Podatki se nalagajo...
EH 24420.0132	22 mm	M8	25 mm	black	yes	contact
Podatki se nalagajo...
EH 24420.0150	22 mm	M8	25 mm	orange	yes	clamp
Podatki se nalagajo...
EH 24420.0152	22 mm	M8	25 mm	black	yes	clamp
Podatki se nalagajo...
EH 24420.0230	25 mm	M10	30 mm	orange	yes	tighten
Podatki se nalagajo...
EH 24420.0232	25 mm	M10	30 mm	black	yes	clamp
Podatki se nalagajo...
EH 24420.0250	25 mm	M10	30 mm	orange	yes	tighten
Podatki se nalagajo...
EH 24420.0252	25 mm	M10	30 mm	black	yes	fasten
Podatki se nalagajo...
EH 24420.0330	30 mm	M12	35 mm	orange	yes	tighten
Podatki se nalagajo...
EH 24420.0332	30 mm	M12	35 mm	black	yes	fasten
Podatki se nalagajo...
EH 24420.0346	30 mm	M12	35 mm	orange	yes	tighten
Podatki se nalagajo...
EH 24420.0348	30 mm	M12	35 mm	black	yes	operate
Podatki se nalagajo...
EH 24420.0350	30 mm	M12	35 mm	orange	yes	tighten
Podatki se nalagajo...
EH 24420.0352	30 mm	M12	35 mm	black	yes	operate
Podatki se nalagajo...
EH 24420.0364	30 mm	M12	35 mm	orange	yes	tighten
Podatki se nalagajo...
EH 24420.0366	30 mm	M12	35 mm	black	yes	tighten
