Erwin Halder KG

Navojni zaklepni sorniki

self-locking, with axial bearing

Koda EH 22356
Izberi izvedbo | Prenesi dokument

Navojni zaklepni sorniki


Threaded lock pins are used for quick fastening, locking, adjusting, changing, clamping, connecting and securing. Quickly and easily unlockable for frequently repeated connections.

By pressing the button, the threaded segments unlock and the threaded lock pin can be inserted into or removed from a threaded hole. A time-consuming screwing in and out is unnecessary.

The thread lock pin is characterised by the following features and advantages:

  • corrosion-protected
  • no time-consuming screwing in and unscrewing
  • self-locking due to spring force
  • with axial bearing

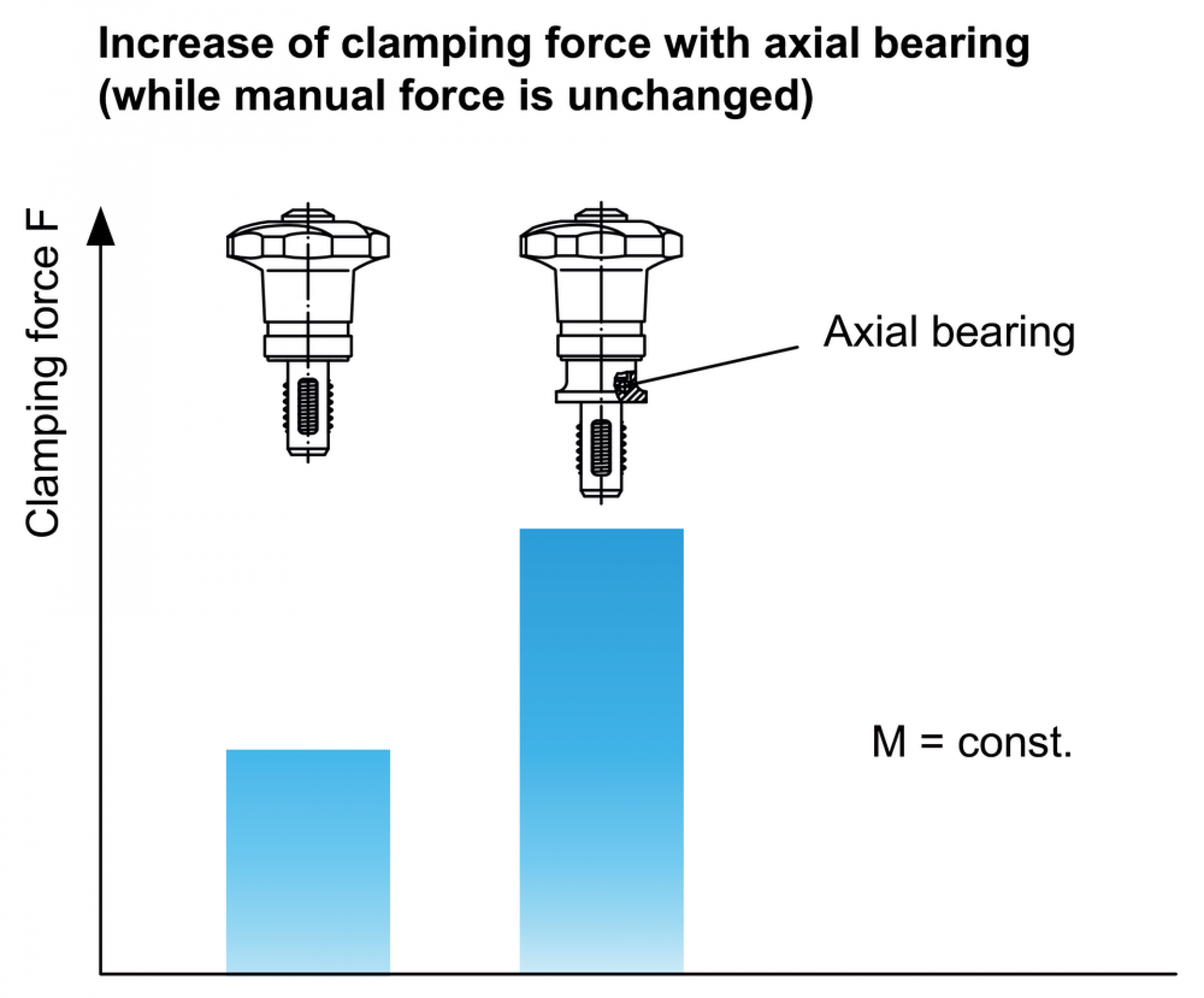

The advantages of the axial bearing:

  • Double clamping force with the same grip size by reducing surface friction.
  • Protection of the component due to fixed contact surface.
  • Low setting behaviour due to higher pretensioning force in the bolt or thread.
  • Less force required to release.
Za ogled cen se prijavite
Nazaj na seznam vseh
Številka izdelka Več info
Nobena verzija izdelka ne ustreza iskalnim kriterijem

Material

Pin part

  • Heat-treated steel, tempered, manganese phosphated
  • Stainless steel 1.4542, precipitation-hardened

Handle

  • Thermoplastic PA 6, black, dull similar to RAL 9005

Press button

  • Aluminium, orange, anodised

Threaded element

  • Stainless steel 1.4542, precipitation-hardened

Axial bearing

  • Steel, nitrided, blackened
  • stainless steel

Spring

  • Stainless Steel

Notes

Special types on request.

Due to the thread geometry, the clamping force is higher with the smaller thread sizes.

Datasheet EH 22356. Threaded Lock Pins – self-locking, with axial bearing
Ball Lock Pins - INCH
Ball Lock Pins - Special parts
Ball Lock Pins
Flyer Ball Lock Pins


RoHS compliant

Contains lead - compliant according to exceptions 6a / 6b / 6c



Contains SVHC substances >0,1% w/w

Contains lead - SVHC list [REACH] as of 10.06.2022



Contains Proposition 65 substances


Lead can cause cancer and reproductive harm from exposure
https://www.P65Warnings.ca.gov/



Free from Conflict Minerals

This product does not contain any substances designated as "conflict minerals" such as tantalum, tin, gold or tungsten from the Democratic Republic of Congo or adjacent countries.
